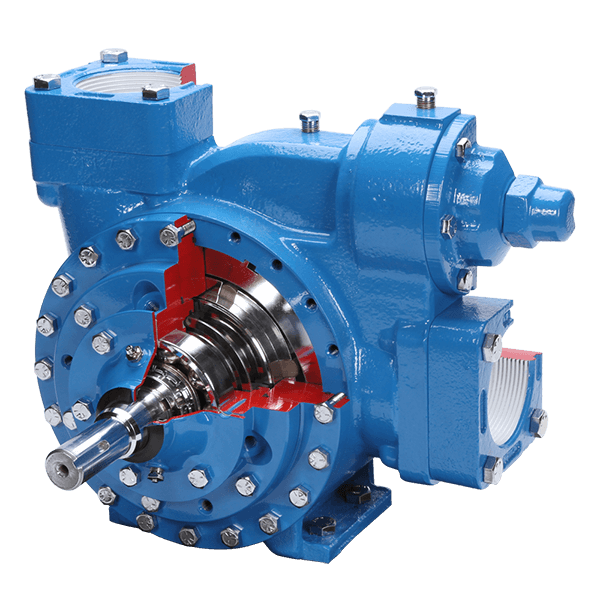

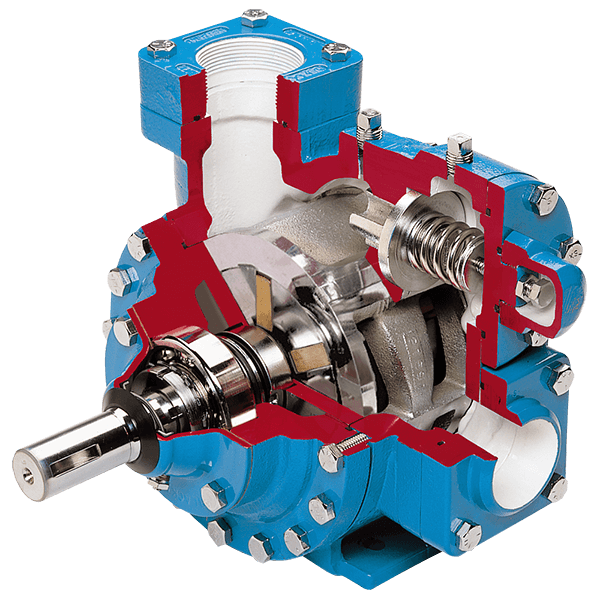

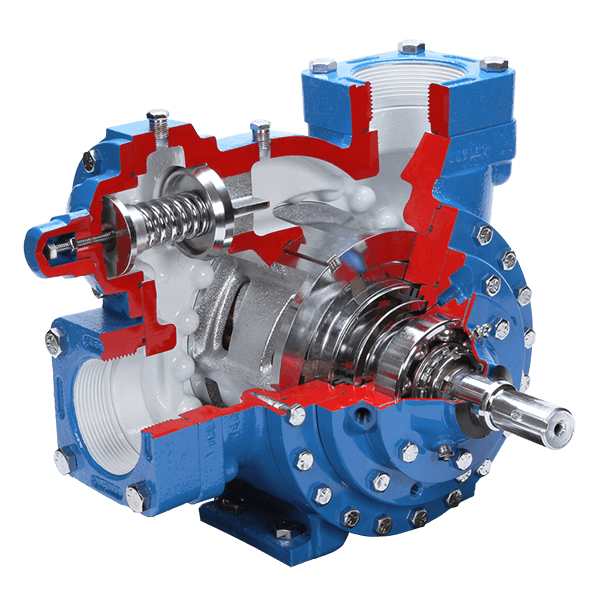

SGL 2-4 Inch Sliding Vane Pumps

Blackmer® SGL pumps, which are part of the Cavitation Line of sliding vane pumps, are designed for the liquid transfer or recirculation of refrigerants and other liquefied gasses. Constructed of shock-resistant ductile iron and available with a wide variety of seal materials, SGL pumps are ideally suited for almost any liquefied gas application.

The sliding vane, positive displacement design provides excellent priming capability and high performance over a wide range of temperatures and differential pressures. The vanes self-adjust as they wear, maintaining the efficiency of a new pump. The vanes, liner and end discs are all easily replaced, bringing the pump back to like new condition. In addition, SGL pumps feature a cavitation suppression liner designed for reducing the noise, vibration, and wear normally caused by entrained vapors.

SGL pumps are available in 2-, 3- and 4-inch sizes. Available options include a double mechanical seal.

Blackmer fully Integrated Unit Assemblies are the pre-engineered and pre-designed drop-in pumping solution. These unit assemblies, include motor, gearbox, baseplate, coupling safety covers, and a SGL Sliding Vane Pump (2, 3 & 4-inch size). No alignment required with these pre-configured fully Integrated Unit Assemblies as they are ready for immediate drop-in installation.

Features and Benefits

• Cavitation suppression liner design for reducing the noise, vibration, and wear normally caused by entrained vapors
• Replaceable casing, liners and end discs allow easy rebuilding of the pumping chamber to like-new condition
• Mechanical seal and elastomer options assure compatibility with refrigerants and other specialty gases
• Available in 2-, 3- and 4-inch sizes
• Ductile-iron construction with internal relief valve
• Blackmer mechanical seal and ball bearing construction provide maximum reliability
• Symmetrical bearing support assures even loading and wear for long life.
• Adjustable relief valve protects pump against excessive pressures
• Optional double mechanical seal
• Advantages of sliding vane technology:
  • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
  • Excellent self-priming and dry-run capabilities
  • Sliding vane design provides sustained performance and trouble-free operation
  • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
  • High suction lift and line-stripping capabilities
  • Low maintenance and low life-cycle costs

Applications

• Butadiene
• Butene
• Dimethyl ether
• Ethyl chloride
• Refrigerants - MF/TA/TMS/TF
• Most 400 & 500 series blends
• Sulfur dioxide

Performance and Specifications

Dimensions

Materials of Construction

Pump Options

Connection Options

Vane Options

Elastomer Options
