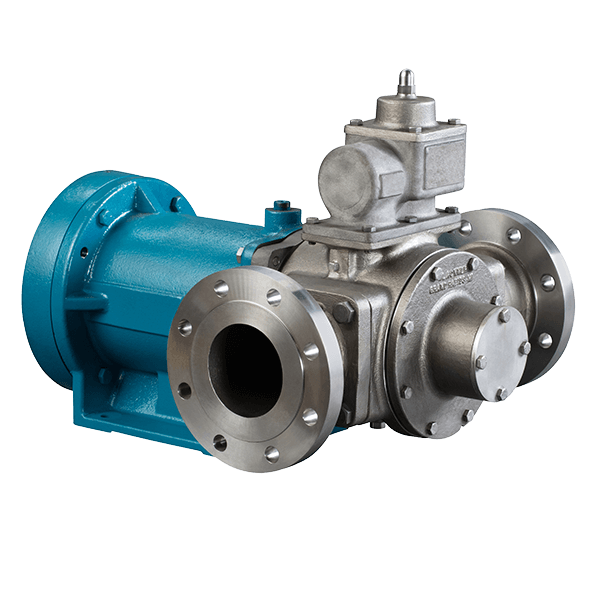

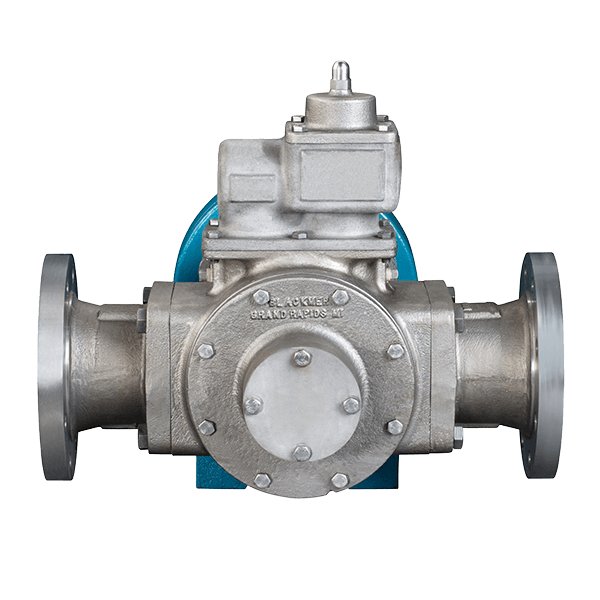

Blackmer® SMVP Series Sliding Vane Pumps, which are part of the Stainless Steel Line, are constructed of stainless steel and combine proven sliding vane technology with a seal-less magnetic coupling. The result is a durable, completely leak-free operation that minimizes product waste and dramatically improves production yield. The absence of shaft leakage increases both personal and environmental safety as it not only means no loss of liquids, but also no release of volatile organic compounds (VOCs) and hazardous air pollutants (HAPs). These pumps are ideal for safe transfer of critical high-value, hazardous or hard to seal fluids. The 6-vane design contributes to reduced noise levels in the pumps, ensuring a fast and quiet operation.
With flow rates of 4 to 215 U.S. gpm (15 to 813 L/min) and operating temperatures of -40°F to 200°F (-40°C to 93°C), the SMVP Series pumps offer the best combined characteristics of sustained high level performance, energy efficiency, trouble-free operation and low maintenance cost.
Features and Benefits
- 316 stainless steel construction with metallized carbon sleeve bearings and non-metallic vanes for longer life
- Blackmer seal-less pumps are designed with self-lubricating carbon graphite sleeve bearings and no metal to metal contact; this special design allows dry running for priming and line stripping
- No barrier fluid system maintenance and/or disposal problems
- All Blackmer seal-less pump models have a unique bearing and head design that allows a small quantity of pumpage to circulate through the containment can and bearing surfaces; this positive flow of fluid minimizes temperature rise for maximum bearing life
- Blackmer seal-less pump models are equipped with samarium-cobalt magnets as standard construction; this rare earth material prevents permanent magnet degradation if adverse operating or "break-free" conditions occur
- Replaceable end discs allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping
- Pump design and operation minimizes shear and agitation
- Symmetrical bearing support assures even loading and wear for long life
- Adjustable relief valve protects pump against excessive pressures
- Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs
Applications
- Acetaldehyde, 100%
- Acetophenone
- Acrylic Acid
- Arsenic Acid
- Benzyl Chloride, 100%
- Cumene
- Cyclohexane
- Dichlorobenzene, Ortho
- Diisocyanate
- Ethanol
- Formaldehyde
- Hexane, dry
- Hydrogen Peroxide
- Hydrogen Sulfide
- Methyl Ethyl Ketone
- Phenol
- Toluene
- Xylene/Xylol
Performance and Specifications
AVAILABLE MODELS
- SMVP15
- SMVP30
- SMVP50
- SMVP100
- SMVP200
- SMVP300
VISCOSITY
- SMVP15/30: 0.2 - 1,050 cP
- SMVP50/100: 0.2 - 2,100 cP
- SMVP200/300: 0.2 - 5,250 cP
CONNECTION ORIENTATION
- Side Inlet | Side Outlet
TEMPERATURE
- -40°F to 200°F (-40°C to 93°C)
NOMINAL FLOW RATE RANGE
- SMVP15: 1 - 17 gpm (4 - 62 L/min)
- SMVP30: 6 - 37 gpm (23 - 142 L/min)
- SMVP50: 1 - 66 gpm (4 - 251 L/min)
- SMVP100: 10 - 110 gpm (38 - 416 L/min)
- SMVP200: 55 - 215 gpm (208 - 813 L/min)
- 4": 220 - 525 gpm (833 - 1,985 L/min)
DIFFERENTIAL PRESSURE
- SMVP15/30/50/100: 125 psi (8.6 bar)
- SMVP200/300: 100 psi (6.9 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- SMVP15/30/50/100: 175 psi (12.1 bar)
- SMVP200/300: 150 psi (10.3 bar)
AVAILABLE CERTIFICATES
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
PRIMARY MATERIALS OF CONSTRUCTION
- Stainless Steel, Duplex Stainless
VANE MATERIALS
- Duravane
MIN/MAX SPEED (rpm)
- SMVP15/30: 640 - 1750
- SMVP50: 420 - 1750
- SMVP100: 350 - 1750
- SMVP200/300: 420 - 1150
Dimensions
| Pump Model | L | W | H | Approx. Wt. | |
|---|---|---|---|---|---|
| SMVP15, SMVP30 | in | 12-5/8 | 7-7/8 | 12-5/8 | 78 lb |
| mm | 320.7 | 200 | 320.7 | 35.5 kg | |
| SMVP50, SMVP100 | in | 15-3/8 | 11 | 15-1/5 | 120 lb |
| mm | 379.4 | 279.4 | 385.8 | 54.4 kg | |
| SMVP200, SMVP300 | in | 24-1/2 | 20 | 18-1/2 | 340 lb |
| mm | 622.3 | 508 | 469.9 | 154.4 |
Materials of Construction
| Parts | Models | Materials |
|---|---|---|
| Cylinder | SMVP15, 30 SMVP50, 100, 200, 300 | 316 Stainless Steel, ASTM A743, CF-8M Duplex Stainless: ASTM 890-4A |
| Heads | SMVP Series | 316 Stainless Steel, ASTM A743, CF-8M |
Pump Options
| Options | Details | |
|---|---|---|
| ORIENTATION OPTIONS | Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side | |
| PORTING OPTIONS | Side Outlet: Outlet 180° inline porting | |
| CONNECTION OPTIONS | Integral ANSI, Class 150 | |
| MOUNTING OPTIONS | Pump Only Unit: Pump, Motor, Baseplate, Couplings, Guards | |
Vane Options
| Material | Temperature Limits | Viscosity |
|---|---|---|
| Duravane | -40°F to 200°F (-40°C to 93°C) | SMVP15/30: 0.2 - 1,050 cP |
| SMVP50/100: 0.2 - 2,100 cP | ||
| SMVP200/300: 0.2 - 4,250 cP |
Elastomer Options
| Temperature Limits | |
|---|---|
| PTFE - SS Spring | -40°F to 200°F (-40°C to 93°C) |
Maintenance Kits
| Model(s) | Description | Part Number |
|---|---|---|
| SMVP15C | Kit - Maintenance | 898938 |
| SMVP15C | Kit - Rebuild | 899038 |
| SMVP30C | Kit - Maintenance | 898939 |
| SMVP30C | Kit - Rebuild | 899039 |
| SMVP50C | Kit - Maintenance | 898940 |
| SMVP50C | Kit - Rebuild | 899040 |
| SMVP100C | Kit - Maintenance | 898941 |
| SMVP100C | Kit - Rebuild | 899041 |
| SMVP200C | Kit - Maintenance | 898942 |
| SMVP200C | Kit - Rebuild | 899042 |
| SMVP300C | Kit - Maintenance | 898942 |
| SMVP300C | Kit - Rebuild | 899042 |
