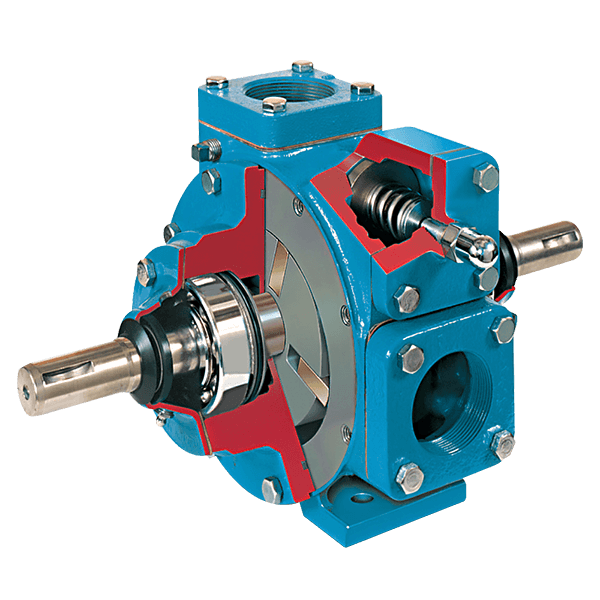

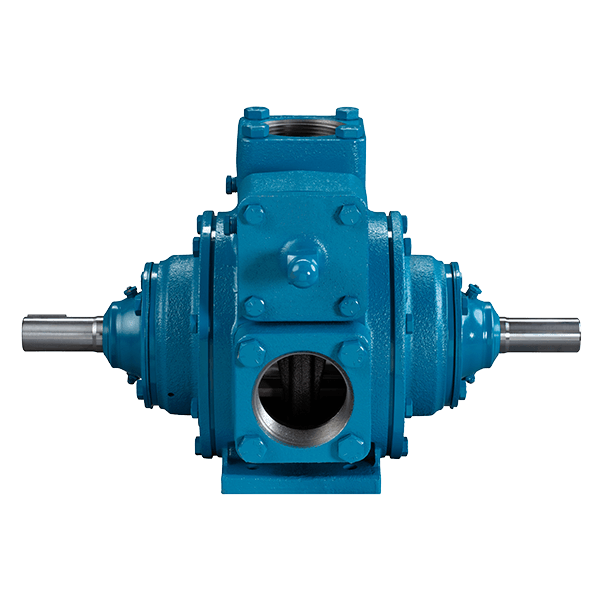

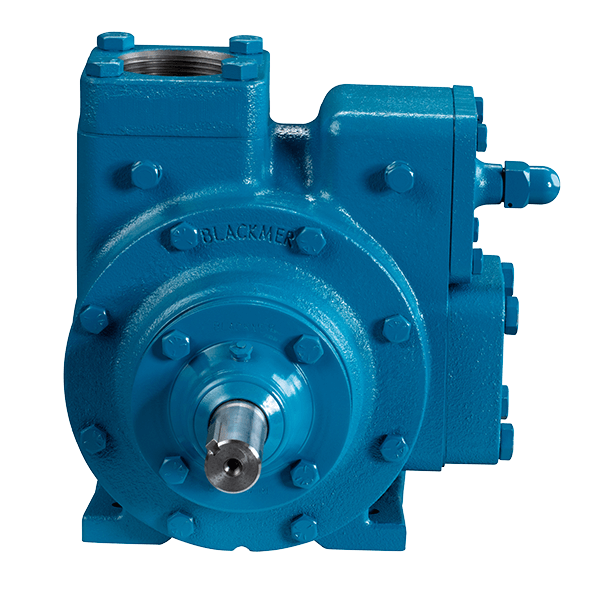

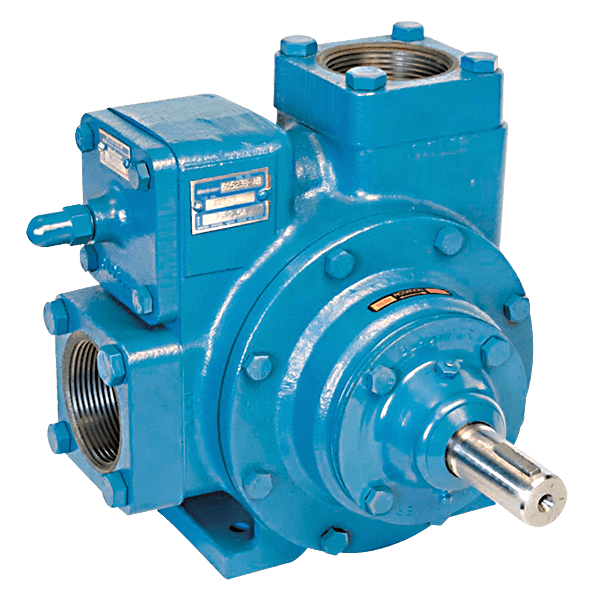

Part of the Iron Line, Blackmer® TX/TXD/TXDI Series Sliding Vane Pumps are durable pumps utilized for fast and quiet operation. The sliding vane design provides sustained performance and trouble-free operation. These pumps are equipped with FKM O-rings and Blackmer mechanical seals that are compatible with all biodiesel and ethanol blends. TX/TXD/TXDI options include corrosion resistant relief valve, pneumatic relief valves and Buna or PTFE elastomers and seals.
Features and Benefits
- Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
- External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
- Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
- Blackmer mechanical seal and ball-bearing construction provide maximum reliability
- Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
- Symmetrical bearing support assures even loading and wear for long life
- Adjustable relief valve protects pump against excessive pressures
- T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
- High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
- External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
- Easy maintenance: vanes can be easily replaced -- without removing pump from truck
- Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs
Applications
Transport delivery, fleet refueling & bulk transfer:
- Fuel oil
- Jet fuel & aviation fuel
- Gasoline
- Ethanol & other alcohols
- Lube oil
- Solvents
- Ester
- Ketone
- Naphtha
- Ether
- Amine
- Aromatic
- Terpene
- Glycol
- Additives
Performance and Specifications
AVAILABLE MODELS
- TX1.5
- TXD(I)2
- TXD(I)2.5
- TXD(I)3
- TX(I)4
VISCOSITY
- 1.0 - 4250 cP
CONNECTION ORIENTATION
- TX & TXD: Side Inlet | Top Outlet
- TXI & TXDI: Side Inlet | Side Outlet
TEMPERATURE
- -25°F to 240°F (-32°C to 115°C)

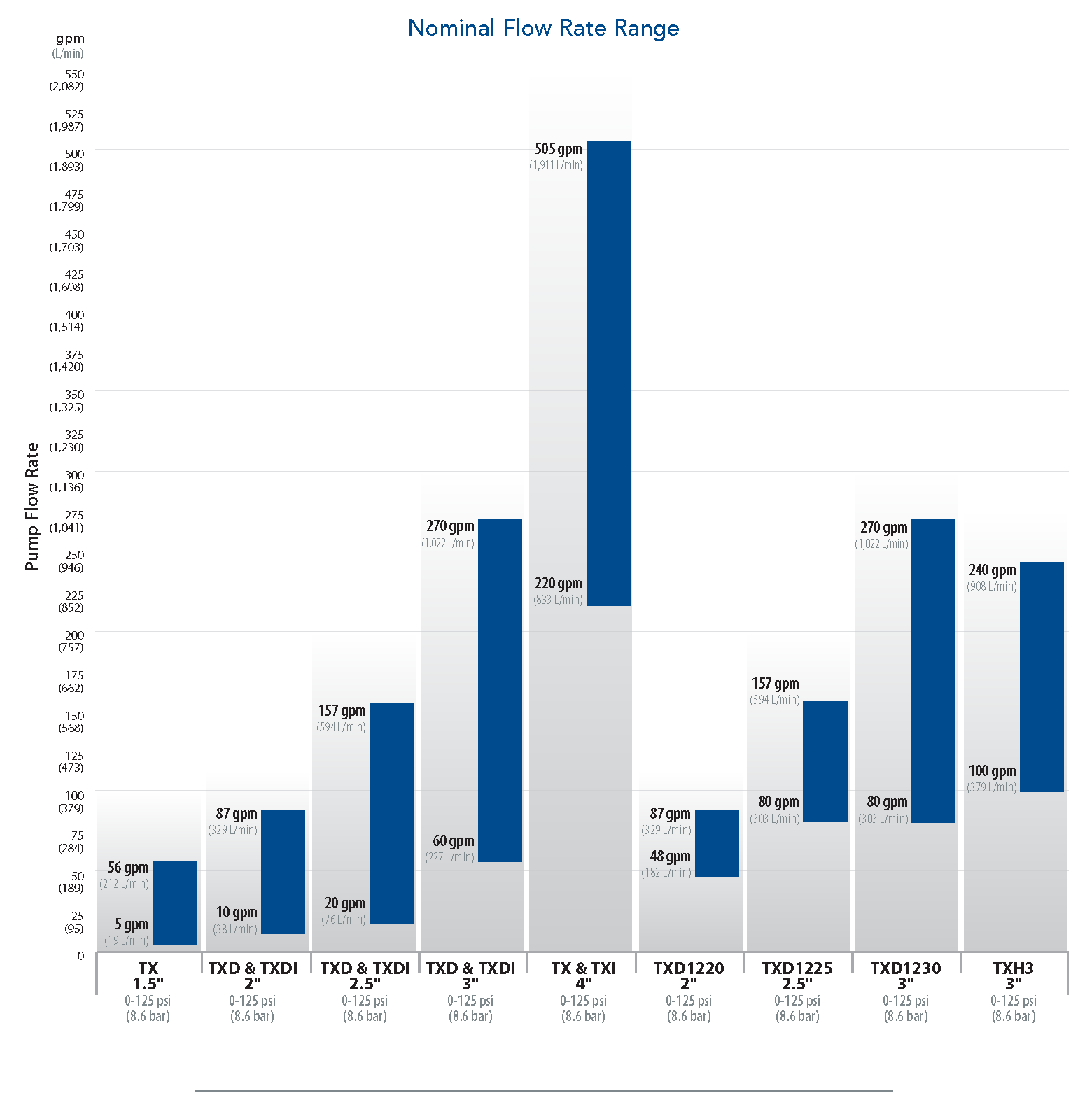

NOMINAL FLOW RATE RANGE
- TX1.5: 56 gpm (212 L/min)
- TXD(I)2: 87 gpm (329 L/min)
- TXD(I)2.5: 157 gpm (594 L/min)
- TXD(I)3: 270 gpm (1,022 L/min)
- TX(I)4: 505 gpm (1,911 L/min)
DIFFERENTIAL PRESSURE
- 125 psi (8.6 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 175 psi (12.1 bar)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
PRIMARY MATERIALS OF CONSTRUCTION
- TX & TXD: Cast Iron
- TXI & TXDI: Ductile Iron
VANE MATERIALS
- Duravane
- Bronze
MIN/MAX SPEED (rpm)
- TX1.5: 200 - 800
- TXD(I)2 & TXD(I)2.5: 70 - 780
- TXD(I)3: 70 - 640
- TX(I)4: 70 - 520
CATALOG OPTIONS
- Connections: NPT, Weld, Victaulic
- Elastomers: BUNA, FKM, PTFE
- Valve: Corrosion resistant
- Bypass: 1-stage or pneumatic 2-stage
- Inlet Strainer, Hydraulic Motor Adapter
Dimensions
| Pump Model | L | W | H | Approx. Wt. | |
|---|---|---|---|---|---|
| TX1.5 | in | 12-7/8 | 10-4/7 | 8-1/2 | 61 lb |
| mm | 327 | 287.3 | 215.9 | 27 kg | |
| TX(D)2A, TXDI2 | in | 16-3/4 | 10 | 8-11/16 | 70 lb |
| mm | 425.5 | 254 | 220.6 | 32 kg | |
| TX(D)2.5A, TXDI2.5 | in | 18-1/4 | 10-3/4 | 9-5/8 | 94 lb |
| mm | 463.6 | 273.1 | 244.5 | 43 kg | |
| TX(D)3E, TXDI3 | in | 20 1/3 | 13 1/2 | 12 4/5 | 152 lb |
| mm | 515.9 | 342.9 | 325.4 | 69 kg | |
| TX4A, TXI4 | in | 19-1/4 | 16-1/2 | 15-1/2 | 295 lb |
| mm | 489 | 419.1 | 393.7 | 134 kg |
Materials of Construction
| PRESSURE PARTS | Pump Model | Material |
|---|---|---|
| Cylinder | TX1.5–3 | Cast Iron: ASTM A48 |
| TX4 & TXDI2-4 | Ductile Iron: ASTM 536 | |
| Heads | TX1.5–3 | Cast Iron: ASTM A48 |
| TX4 & TXDI2-4 | Ductile Iron: ASTM 536 | |
| Relief Valve Cover | TX1.5–3 | Cast Iron: ASTM A48 |
| TX4 & TXDI2-4 | Ductile Iron: ASTM 536 |
Pump Options
| Options | |
|---|---|
| ORIENTATION OPTIONS | Double End: drive pump from either side Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side |
| PORTING OPTIONS | TX/TXD: Top Outlet: Outlet 90° offset from inlet TXI/TXDI: Side Outlet: Outlet 180° offset from inlet |
| CONNECTION OPTIONS | NPT (threaded) Welded, Victaulic |
| MOUNTING OPTIONS | Pump Only with Hydraulic Motor Adapter and/or Inlet Strainer |
| SEALING OPTIONS | Blackmer single mechanical seal |
Vane Options
| Materials | Temperature Limits | Viscosity |
|---|---|---|
| Duravane | -25°F to 240°F (-32°C to 115°C) | 0.2 - 4250 cP |
Elastomer Options
| Materials | Temperature Limits |
|---|---|
| FKM | -15°F to 240°F (-26°C to 115°C) |
| Buna-N | -25°F to 240°F (-32°C to 115°C) |
| PTFE - SS Spring | 0°F to 240°F (-18°C to 115°C) |
Maintenance Kits
| Model(s) | Description | Part Number |
|---|---|---|
| TX1.5 | Kit - Maintenance, Buna-N | 898949 |
| TX1.5 | Kit - Maintenance, FKM | 899179 |
| TXD2A, TX2A, TXD2A-AVA | Kit - Maintenance, Buna-N | 898950 |
| TXD2A | Kit - Maintenance | 898956 |
| TXD2.5A, TX2.5A, TXD2.5A-AVA | Kit - Maintenance, Buna-N | 898951 |
| TXD2.5A | Kit - Maintenance | 898957 |
| TXD3E, TX3E | Kit - Maintenance, Buna-N | 898952 |
| TXD3E | Kit - Maintenance | 898958 |
| TX4A | Kit - Maintenance, Buna-N | 898953 |
| TX4A | Kit - Maintenance | 898959 |
