With pump speeds of up to 1,200 RPM, the durable, high-speed, Iron Line, TX1220 truck pumps provide fast and quiet operation while the sliding vane design offers sustained performance and reliability.

Adjustable relief valve protects pump from excessive pressure. Optional air operated piston-style relief valve offers easy hose and nozzle handling. T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in the piping and tanks.

Available in 2-, 2.5- and 3-in port sizes with flow rates from 20 to 265 US gallons per minute (4 to 60 m3/h) and pressures up to 125 psi (8.6 bar).

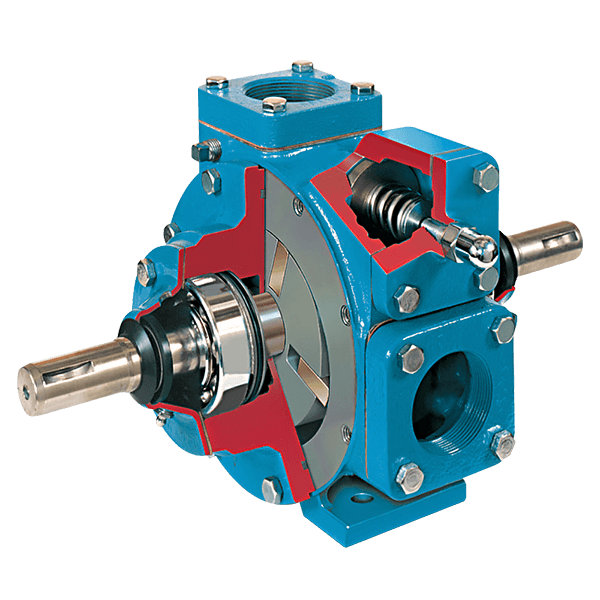

TXD1220 Sliding Vane Pumps
TXD1220 Sliding Vane Pumps
TXD1220 Sliding Vane Pumps
TXD1220 Sliding Vane Pumps
TXD1220 Sliding Vane Pumps
TXD1220 Sliding Vane Pumps

Features and Benefits

  • Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
  • External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
  • Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
  • Blackmer mechanical seal and ball-bearing construction provide maximum reliability
  • Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
  • Symmetrical bearing support assures even loading and wear for long life
  • Adjustable relief valve protects pump against excessive pressures
  • T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
  • High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
  • External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
  • Easy maintenance: vanes can be easily replaced -- without removing pump from truck
  • Advantages of sliding vane technology:
    • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
    • Excellent self-priming and dry-run capabilities
    • Sliding vane design provides sustained performance and trouble-free operation
    • High suction lift and line-stripping capabilities
    • Low maintenance and low life-cycle costs

Applications

Transport delivery, fleet refueling & bulk transfer:

  • Fuel oil
  • Jet fuel & aviation fuel
  • Gasoline
  • Biodiesel
  • Ethanol & other alcohols
  • Solvents
  • Ester
  • Ketone
  • Naphtha
  • Ether
  • Amine
  • Aromatic
  • Terpene
  • Glycol
  • Additives

Performance and Specifications

AVAILABLE MODELS

  • TXD1220
  • TXD1225
  • TXD1230

VISCOSITY

  • 0.2 - 20 cP

CONNECTION ORIENTATION

  • Side Inlet | Top Outlet

TEMPERATURE

  • -25°F to 240°F (-32°C to 115°C)

NOMINAL FLOW RATE RANGE

  • TXD1220: 48 - 87 gpm (181 - 329 L/min)
  • TXD1225: 80 - 157 gpm (302 - 594 L/min)
  • TXD1230: 80 - 270 gpm (302 - 1,022 L/min)

DIFFERENTIAL PRESSURE

  • 125 psi (8.6 bar)

MAXIMUM WORKING PRESSURE (MAWP)

  • 175 psi (12.1 bar)

AVAILABLE CERTIFICATES

  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

PRIMARY MATERIALS OF CONSTRUCTION

  • Cast Iron

VANE MATERIALS

  • Duravane

MIN/MAX SPEED (rpm)

  • TXD1220 & TXD1225: 700 - 1,200
  • TXD1230: 270 - 900

CATALOG OPTIONS

  • Connections: NPT, Weld, Victaulic
  • Elastomers: FKM
  • Valve: Corrosion resistant
  • Inlet Strainer, Hydraulic Motor Adapter

Dimensions

Pump Model L W H Approx. Wt.
TXD1220 in 16-3/4 10 8-11/16 70 lb
mm 425.5 254 220.6 32 kg
TXD1225 in 18-1/4 10-3/4 9-5/8 94 lb
mm 463.6 273.1 244.5 43 kg
TXD1230 in 20-1/3 13-1/2 12-4/5 152 lb
mm 515.9 342.9 325.4 69 kg

Materials of Construction

Pressure Parts Materials
Cylinder Cast Iron: ASTM A48
Heads Cast Iron: ASTM A48
Relief Valve Cover Cast Iron: ASTM A48

Pump Options

Options Details
Orientation Options Double End: Drive pump from either side
Porting Options Top Outlet: Outlet 90° offset from inlet
Connection Options NPT (threaded)
Welded, Victaulic
Mounting Options Pump Only with Hydraulic Motor Adapter and/or Inlet Strainer
Sealing Options Blackmer single mechanical seal

Vane Options

Material Temperature Limits Viscosity
Duravane -25°F to 240°F (-32°C to 115°C) 0.2 - 20 cP

Elastomer Options

Material Temperature Limits
FKM -25°F to 240°F (-32°C to 115°C)

Maintenance Kits

Model(s) Description Part Number
TXD1220 Kit - Maintenance, FKM 899180
TXD1225 Kit - Maintenance, FKM 899181
TXD1230 Kit - Maintenance, FKM 899182
