TXH Sliding Vane Pumps

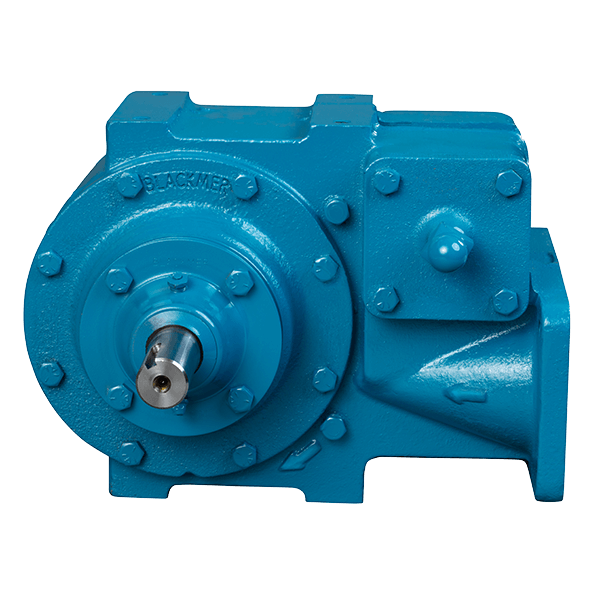

Blackmer® TXH3 cast-iron rotary vane pumps, part of the Iron Line of sliding vane pumps, have been designed for use on tank trucks and transports that handle a wide range of clean, non-abrasive and non-corrosive fluids that are compatible with cast iron.

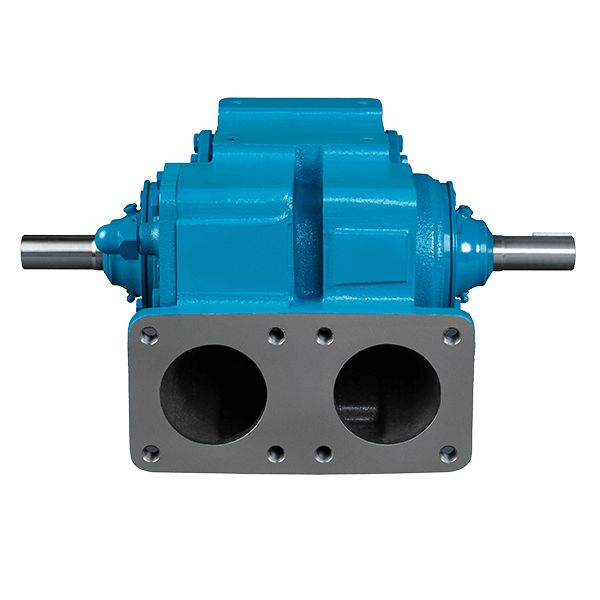

TXH3 pumps are designed with horizontal parallel porting that can offer installers easier piping connections than pumps with 90° ported pumps. TXH3 pumps are also installed using mounting feet rather than brackets. Other features of the TXH3 models are a large diameter shaft with low-friction, grease-lubricated ball bearings for smooth and quiet operation. Cartridge-type mechanical seals provide reliable service while preventing external leakage. The double-ended shaft allows for either clockwise or counter-clockwise rotation. Internal safety relief valves are standard with an optional piston air valve for trucks with automatic pressure-control systems also available.

Features and Benefits

• External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
• Dual-ended shaft simplifies installation
• Blackmer mechanical seal and ball-bearing construction provide maximum reliability
• Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
• Symmetrical bearing support assures even loading and wear for long life
• Adjustable relief valve protects pump against excessive pressures
• T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
• High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
• External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
• Easy maintenance: vanes can be easily replaced -- without removing pump from truck
• Advantages of sliding vane technology:
  • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
  • Excellent self-priming and dry-run capabilities
  • Sliding vane design provides sustained performance and trouble-free operation
  • High suction lift and line-stripping capabilities
  • Low maintenance and low life-cycle costs

Applications

Transport delivery, fleet refueling & bulk transfer:

• Fuel oil
• Jet fuel & aviation fuel
• Gasoline
• Biodiesel
• Ethanol & other alcohols
• Solvents
• Ester
• Ketone
• Naphtha
• Ether
• Amine
• Aromatic
• Terpene
• Glycol
• Additives

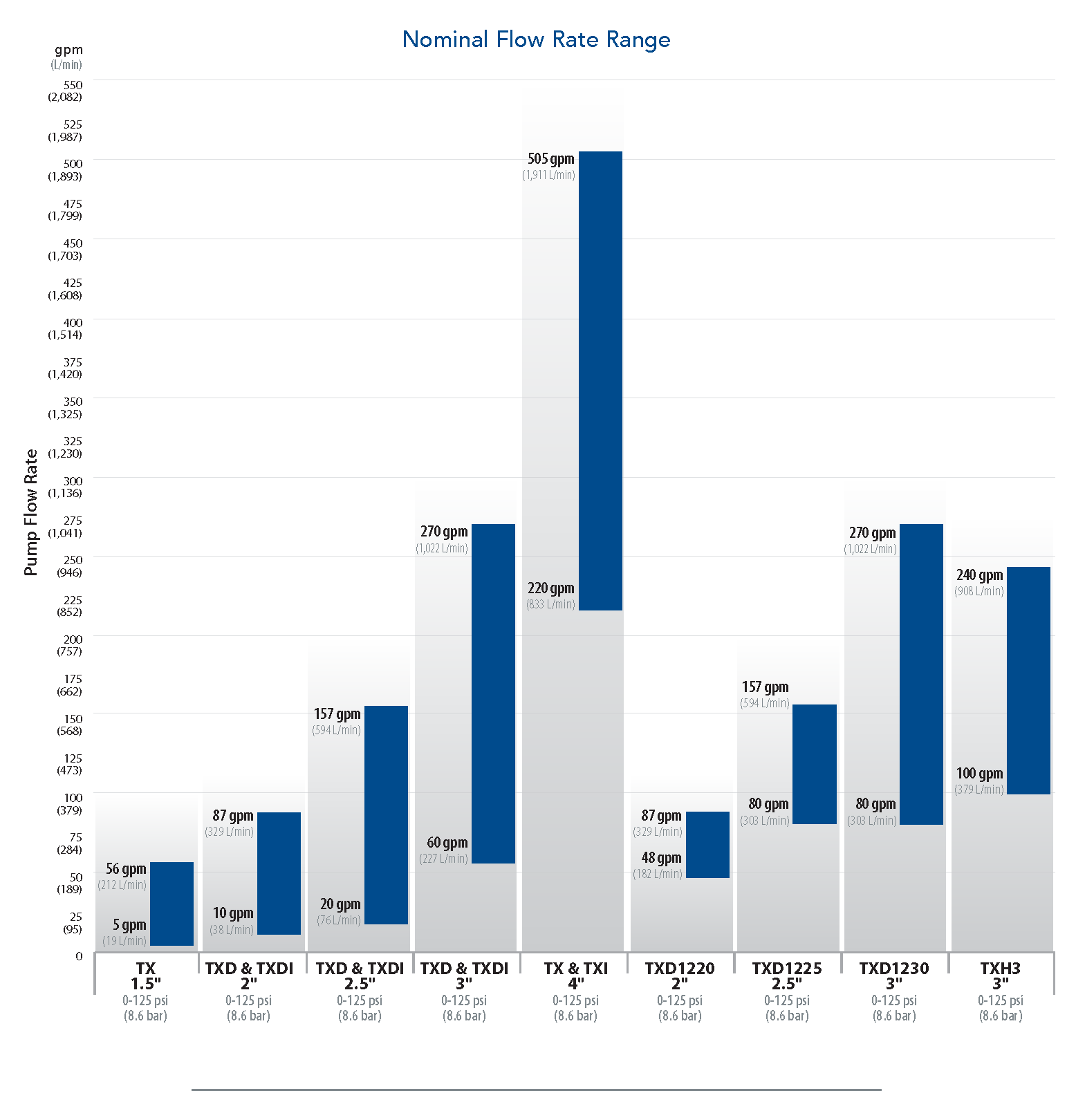

Performance and Specifications

Dimensions

Materials of Construction

Pump Options

Vane Options

Elastomer Options
