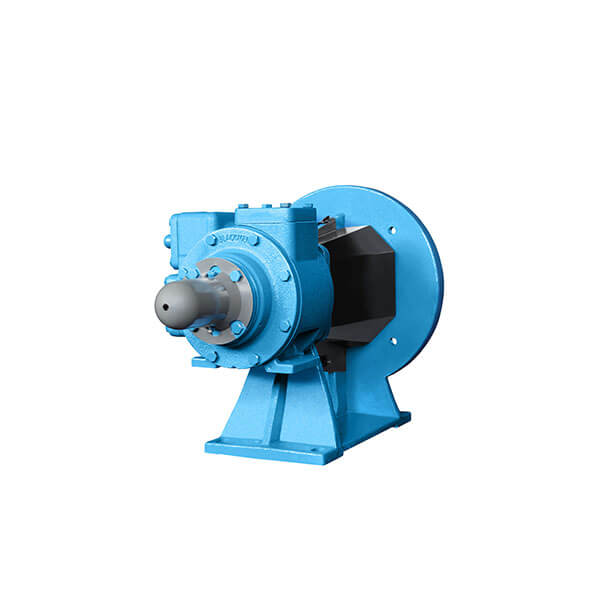

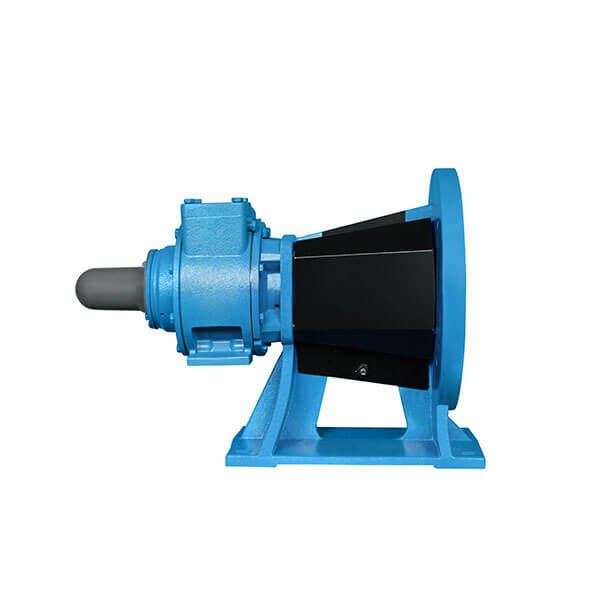

X1220, SX1220, & X1225 Direct Drive Sliding Vane Pumps

High speed, high flow, compact, bi-directional and self-priming are just a few of the benefits of Direct Drive Series Sliding Vane Pumps. Available in 2- and 2.5-inch sizes, these motor speed, Direct Drive Sliding Vane Pumps are designed for fast loading and unloading of thin viscosity fluids (0.2 - 20 cP). Alignment-free Direct Drive Series Sliding Vane Pumps eliminate the need for a V-belt or gear reducer, ensuring a small compact footprint thanks to an adapter that directly couples the pump to a 50- or 60-Hz motor.

With its compact size, ability to be mounted in any orientation – vertical, horizontal, or inverted – and capability to be used in portable mobile installations, the Direct Drive Series provides flexibility in almost any tank loading or unloading application.

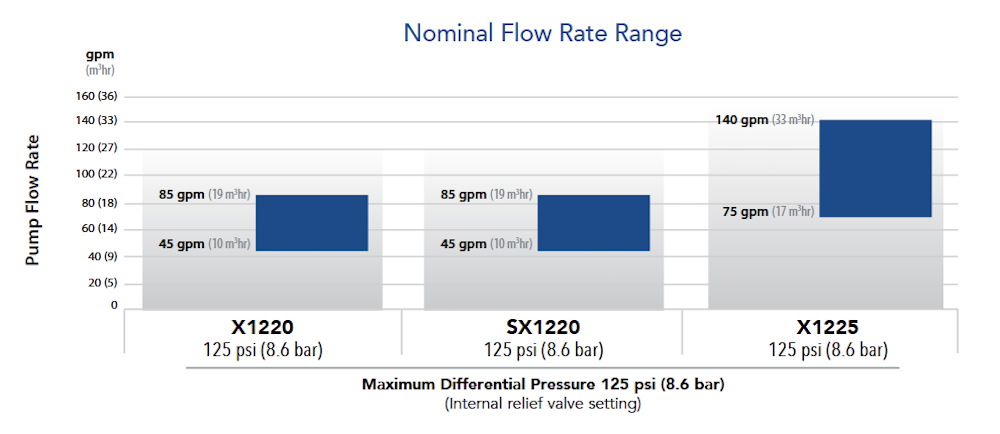

Available in iron and stainless-steel construction, Direct Drive Series Pumps have a maximum differential pressure of 125 psi (8.6 bar) and can achieve flow rates up to 145 gpm (33 m3/hr) with the 2.5-inch model and 85 gpm (19 m3/hr) with the 2-inch model.

Features and Benefits

• Alignment-free pumps reduce downtime and simplify maintenance

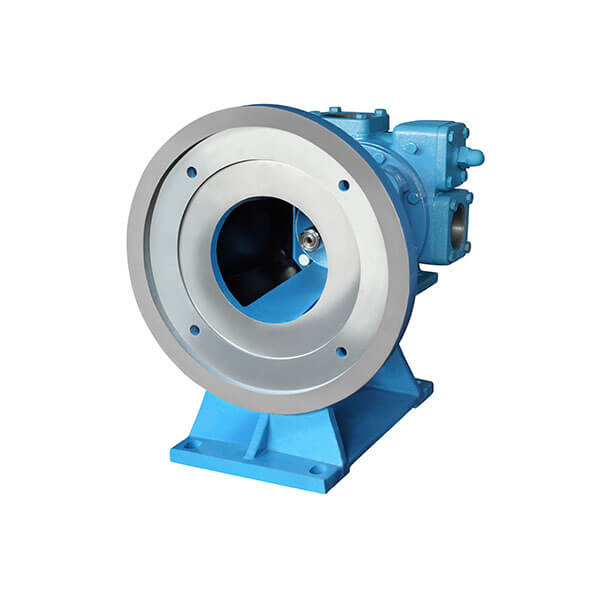

• Compact footprint thanks to an adapter that directly couples the pump to the motor
• Motor speed pumps with speeds up to 1,200 rpm
• Eliminates traditional couplings; no V-belt or gear reducer needed
• A flexible design ideal for mobile installations on carts, trailers, or portable frames
• Mounting orientation available for vertical, horizontal, or inverted configurations
• Self-priming and suction lift – dry prime without pre-filling of piping or the pump with a rated suction lift of 25 feet (7.6 meters)
• Line-stripping and product-recovery capabilities– effectively evacuate tank liquid heel and purge piping system between batches
• Bi-directional pumping – operate the pump forwards and backward without any repiping
• Advantages of sliding vane technology:
  • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
  • Excellent self-priming and dry-run capabilities
  • Sliding vane design provides sustained performance and trouble-free operation
  • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
  • Low maintenance and low life-cycle costs

Applications

• Truck loading & unloading
• Transloading between tanks
• Batch Loading

Fluids

• Solvents
• Gasoline
• Diesel
• Biofuel
• Caustic
• DEF/AdBlue
• Vegetable Oils
• Other Chemicals

Performance and Specifications

Materials of Construction

Pump Options

Vane Options

Elastomer Options

Motor Sizes

Flow Range
