X model positive displacement rotary pumps, part of the Iron Line of sliding vane pumps, utilize a unique sliding vane design to offer the best combined characteristics of sustained high level performance, energy efficiency, trouble-free operation and low maintenance cost. Also, the high suction lift capability of these pumps makes them especially suitable for pumping from underground tanks, bulk plant service and aircraft refueling.
Blackmer® X model pumps are available in 2-, 2.5-, 3- and 4-in flanged port sizes with capacities from 10 to 520 U.S. gpm (38-1,855 L/min). Cast-iron construction is standard on all models except the X4 model which is ductile iron construction. All models have external ball bearings isolated from the pumpage by mechanical seals. X model pumps feature a 90° porting orientation, while XH model pumps have a 180° porting orientation.
Blackmer fully Integrated Unit Assemblies are the pre-engineered and pre-designed drop-in pumping solution. These unit assemblies, include motor, gearbox, baseplate, coupling safety covers, and a XLW Sliding Vane Pump (2, 2.5, 3 & 4-inch size). No alignment required with these pre-configured fully Integrated Unit Assemblies as they are ready for immediate drop-in installation.
Features and Benefits
- Durable pumps for fast and quiet operation
- Latest 6-vane design contributes to reduced noise levels in the pumps
- Blackmer mechanical seal and ball bearing construction provide maximum reliability
- Symmetrical bearing support assures even loading and wear for long life.
- Adjustable relief valve protects pump against excessive pressures.
- External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk.
- Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs
Applications
Blending, loading, unloading & transfer of:
- Fuel oil
- Jet fuel
- Gasoline
- Ethanol & other alcohols
- Lube oil
- Solvents
- Ester
- Ketone
- Naphtha
- Ether
- Amine
- Aromatic
- Terpene
- Glycol
- Additives
Performance and Specifications
AVAILABLE MODELS
- X2
- XH2
- X2.5
- XH2.5
- X3
- XH3
- X4
- XH4
VISCOSITY
- 0.2 - 4,250 cP
CONNECTION ORIENTATION
- X: Side Inlet | Top Outlet
- XH: Side Inlet | Side Outlet
TEMPERATURE
- -25°F to 300°F (-32°C to 148°C)

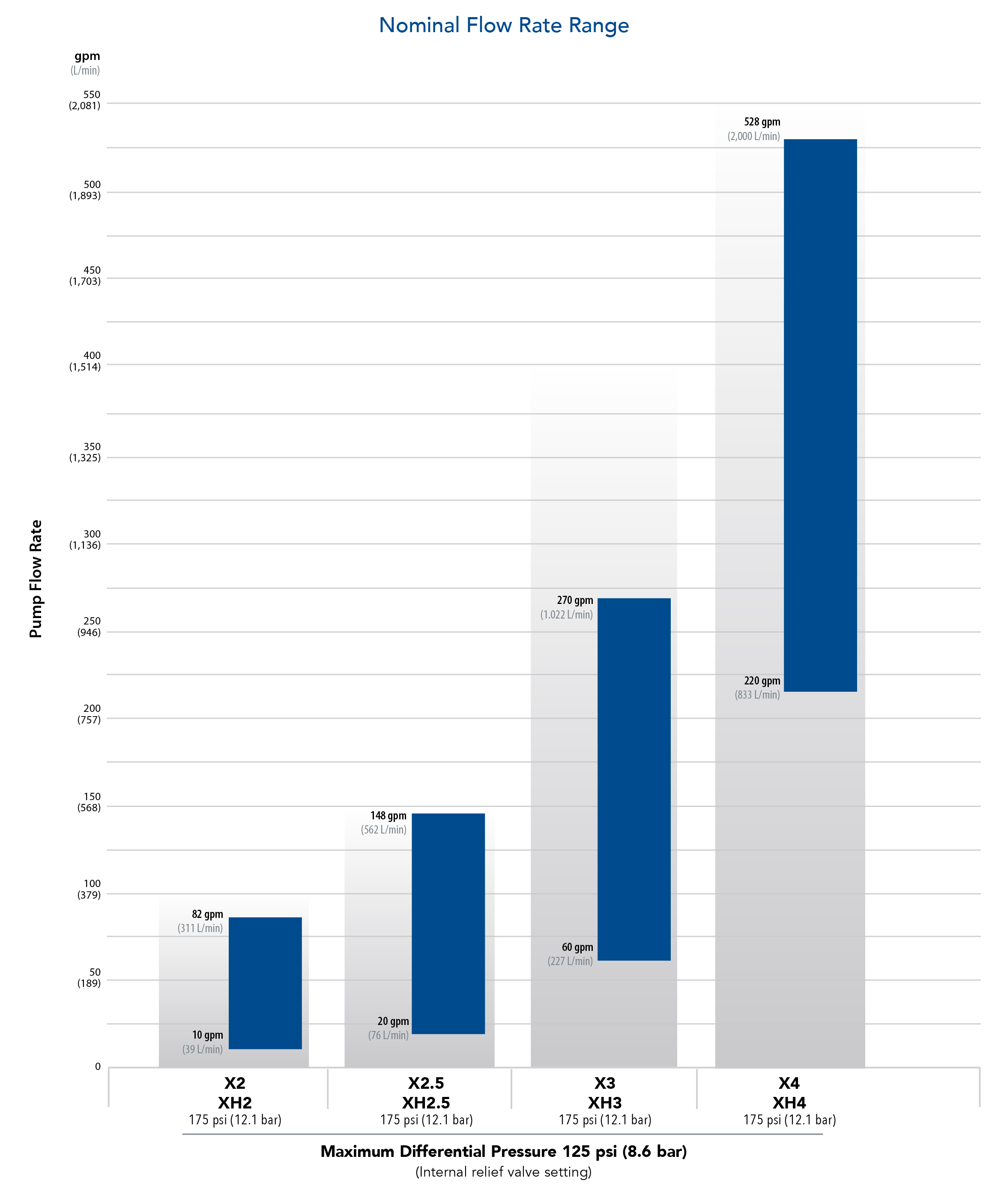

NOMINAL FLOW RATE RANGE
- X(H)2: 10 - 82 gpm (38 - 311 L/min)
- X(H)2.5: 20 - 148 gpm (76 - 562 L/min)
- X(H)3: 60 - 270 gpm (227 - 1,022 L/min)
- X(H)4: 220 - 528 gpm (833 - 2,000 L/min)
DIFFERENTIAL PRESSURE
- 125 psi (8.6 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 175 psi (12.1 bar)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
PRIMARY MATERIALS OF CONSTRUCTION
- X: Cast Iron
- XH: Ductile Iron
VANE MATERIALS
- Duravane
- EC Laminate
- Bronze
- Iron
MIN/MAX SPEED (rpm)
- X(H)2: 70 - 780
- X(H)2.5: 70 - 780
- X(H)3: 70 - 640
- X(H)4: 70 - 520
CATALOG OPTIONS
- Connections: NPT, Weld, ANSI Flange
- Elastomers: BUNA, FKM, PTFE
- Seal: Blackmer single mechanical
Dimensions
| Pump Model | L | W | H | Approx. Wt. | |
|---|---|---|---|---|---|
| X2 | in | 15-1/4 | 9-3/4 | 8-2/3 | 70 lb |
| mm | 387.4 | 247.7 | 211.6 | 32 kg | |
| X2.5 | in | 14-3/4 | 10-11/16 | 9-5/8 | 93 lb |
| mm | 374.7 | 270.8 | 244.7 | 42 kg | |
| X3 | in | 16 | 13-7/16 | 12-1/4 | 152 lb |
| mm | 406.4 | 341.4 | 311.2 | 69 kg | |
| X4 | in | 19-1/8 | 16-1/2 | 15-1/2 | 275 lb |
| mm | 486.4 | 419.1 | 393.7 | 125 kg | |
| XH2 | in | 13-1/4 | 10-1/16 | 8-7/8 | 65 lb |
| mm | 336.6 | 255 | 224.8 | 29 kg | |
| XH2.5 | in | 14-3/4 | 11-1/8 | 9-4/5 | 85 lb |
| mm | 374.7 | 283.2 | 248.9 | 39 kg | |
| XH3 | in | 16 | 14-1/3 | 12-1/16 | 137 lb |
| mm | 406.4 | 363.9 | 306.3 | 62 kg | |
| XH4 | in | 19-1/16 | 17-15/16 | 15-9/16 | 292 lb |
| mm | 484.1 | 455.7 | 394.9 | 132 kg |
Materials of Construction
| Parts | Models | Materials |
|---|---|---|
| Cylinder, Relief Cover Valve | X2, 2.5, 3 X4 and all XH | Cast Iron: ASTM A48 Ductile Iron: ASTM 536 |
| Head | X(H)2, 2.5, 3 X4, XH4 | Cast Iron: ASTM A48 Ductile Iron: ASTM 536 |
| Bearing Covers | X(H)2, 2.5, 3 X(H)4 | Steel Cast Iron: ASTM A48 |
| Locknut and Lockwasher | X2.5, XH2.5, X3, XH3 Only | Steel |
| Rotor & Shaft | All Models | Ductile Iron: ASTM 536 |
| Shaft | All Models | High Strength Steel |
Pump Options
| Options | Details |
|---|---|
| ORIENTATION OPTIONS | Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side |
| PORTING OPTIONS | X Series: Top Outlet: Outlet 90º offset from inlet XH Series: Side Outlet: Outlet 180° offset from inlet |
| CONNECTION OPTIONS | NPT (threaded) Welded, ANSI Flange (CI 150 RF) |
| MOUNTING OPTIONS | Pump Only Unit: Pump, Gearbox, Motor, Baseplate, Couplings, Guards |
| SEALING OPTIONS | Blackmer single mechanical seal |
Vane Options
| Material | Temperature Limits | Viscosity |
|---|---|---|
| Duravane | -25°F to 240°F (-32°C to 115°C) | 0.2 - 4,250 cP |
| EC Laminate | -25°F to 300°F (-32°C to 148°C) | 0.2 - 8,500 cP |
| Bronze | -25°F to 300°F (-32°C to 148°C) | 105 - 108,000 cP |
| Cast Iron | -25°F to 300°F (-32°C to 148°C) | 105 - 108,000 cP |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| BUNA | -25°F to 240°F (-32°C to 117°C) |
| FKM | -15°F to 300°F (-26°C to 150°C) |
| PTFE | -25°F to 300°F (-32°C to 150°C) |
Maintenance Kits
| Model(s) | Description | Part Number |
|---|---|---|
| X2, XH2 | Kit - Maintenance | 898956 |
| X2.5, XH2.5 | Kit - Maintenance | 898957 |
| X3, XH3 | Kit - Maintenance | 898958 |
| X4, XH4 | Kit - Maintenance | 898959 |
