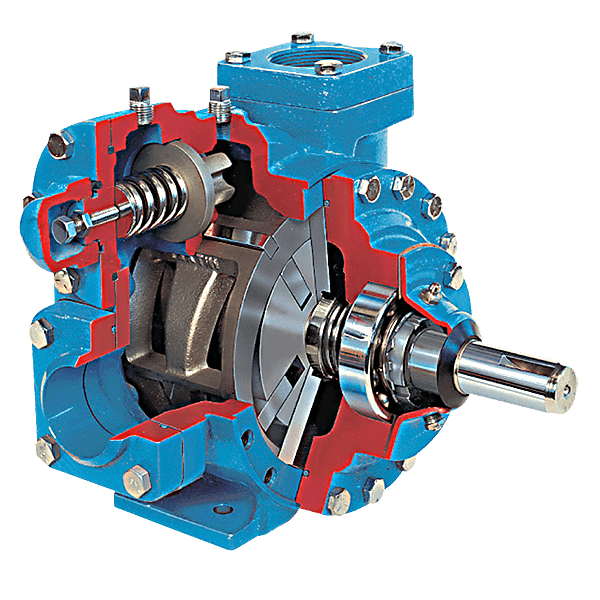

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the XL pump line - which is part of the Iron Line of sliding vane pumps - features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.

Blackmer fully Integrated Unit Assemblies are the pre-engineered and pre-designed drop-in pumping solution. These unit assemblies, include motor, gearbox, baseplate, coupling safety covers, and a XL Sliding Vane Pump (2, 3 & 4-inch size). No alignment required with these pre-configured fully Integrated Unit Assemblies as they are ready for immediate drop-in installation.

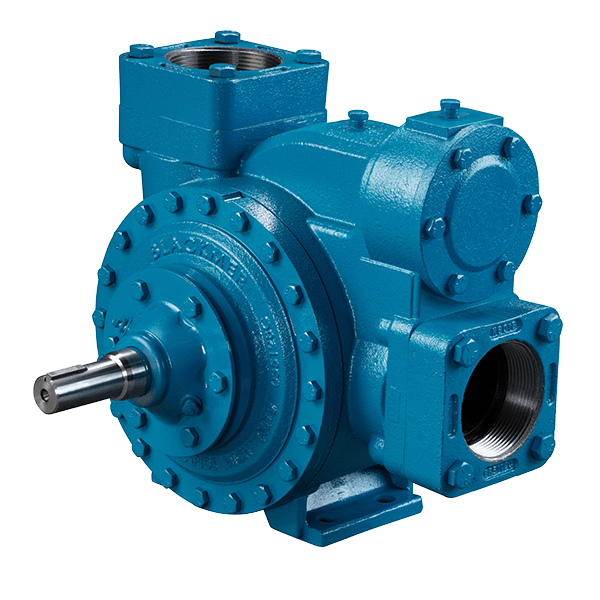

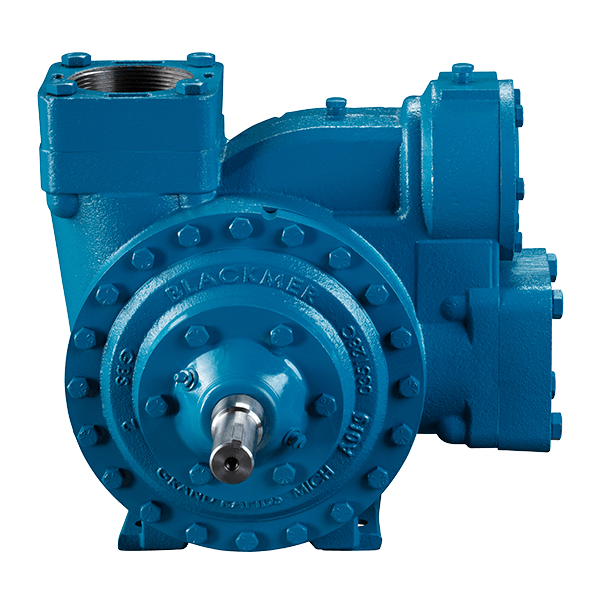

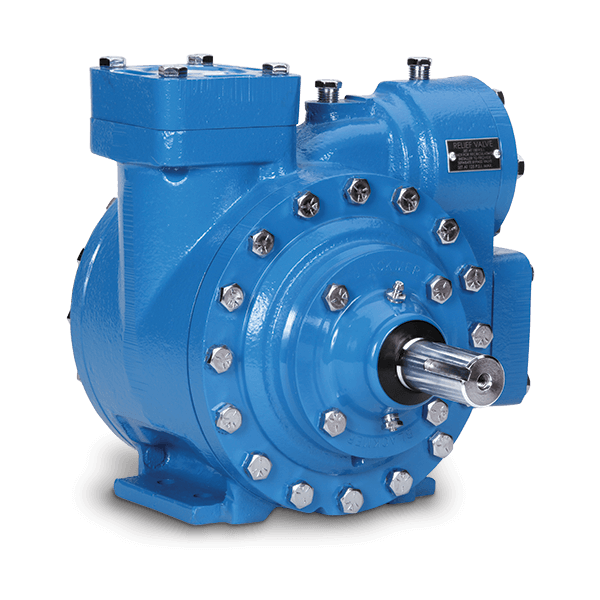

XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps
XL 2-4 Inch Sliding Vane Pumps

Features and Benefits

  • Ductile-iron construction with internal relief valve
  • Blackmer mechanical seal and ball bearing construction provide maximum reliability
  • Symmetrical bearing support assures even loading and wear for long life
  • Adjustable relief valve protects pump against excessive pressures
  • External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
  • Advantages of sliding vane technology:
    • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
    • Excellent self-priming and dry-run capabilities
    • Sliding vane design provides sustained performance and trouble-free operation
    • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
    • High suction lift and line-stripping capabilities
    • Low maintenance and low life-cycle costs

Applications

  • Refinery applications
  • Lube oil plants
  • General industry
  • Processing applications
  • Filling applications
  • Transfer applications

Performance and Specifications

AVAILABLE MODELS

  • XL2
  • XL3
  • XL4

VISCOSITY

  • 0.2 - 4,250 cP

CONNECTION ORIENTATION

  • Side Inlet | Top Outlet

TEMPERATURE

  • -25°F to 300°F (-32°C to 149°C)

NOMINAL FLOW RATE RANGE

  • XL2: 14 - 95 gpm (53 - 359 L/min)
  • XL3: 24 - 192 gpm (192 - 726 L/min)
  • XL4: 104 - 345 gpm (394 - 1,306 L/min)

DIFFERENTIAL PRESSURE

  • 150 psi (10.3 bar)

MAXIMUM WORKING PRESSURE (MAWP)

  • 350 psi (24.1 bar)

AVAILABLE CERTIFICATES

  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

PRIMARY MATERIALS OF CONSTRUCTION

  • Ductile Iron

VANE MATERIALS

  • Duravane
  • EC Laminate
  • EC Cast Iron

MIN/MAX SPEED (rpm)

  • XL2, XL3: 125 - 780
  • XL4: 125 - 640

Dimensions

Pump Model L W H Approx. Wt.
XL2 in 13-4/9 11 10 85 lb
mm 341.3 281 254 38.6 kg
XL3 in 15-15/16 15-7/8 13-3/8 160 lb
mm 404.8 403.2 339.7 72.6 kg
XL4 in 16-7/16 16-15/16 15-7/16 205 lb
mm 417.5 430.2 392.2 93 kg

Materials of Construction

Parts Models Materials
Casing, Heads, Relief Valve Cover All XL Models Ductile Iron: ASTM 536
Liner  XL2, XL3
 Ductile Iron: ASTM 536
XL4 Cast Iron: ASTM A48

Pump Options

Options
ORIENTATION OPTIONS Right Hand: INLET is to the right, when looking from driven side
Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS Top Outlet: Outlet 90º offset from inlet
CONNECTION OPTIONS NPT (threaded)
MOUNTING OPTIONS Pump Only
Unit: Pump, Motor, Baseplate, Couplings, Guards
SEALING OPTIONS Blackmer single mechanical seal

Vane Options

Material Temperature Limits Viscosity
Duravane -25°F to 240°F (-32°C to 115°C) 0.2 - 4,250 cP
EC Laminate -25°F to 240°F (-32°C to 115°C) 0.2 - 4,250 cP
Cast Iron -25°F to 240°F (-32°C to 115°C) 105 - 4,250 cP

Elastomer Options

Materials Temperature Limits
FKM -15°F to 240°F (-26°C to 115°C)
PTFE - SS Spring 0°F to 240°F (-18°C to 115°C)
Buna-N -25°F to 240°F (-32°C to 115°C)

Maintenance Kits

Model(s) Description Part Number
XL2 Kit - Maintenance 898963
XL2 Kit - Rebuild 899063
XL3 Kit - Maintenance 898964
XL3 Kit - Rebuild 899064
XL4 Kit - Maintenance 898965
XL4 Kit - Rebuild 899065
