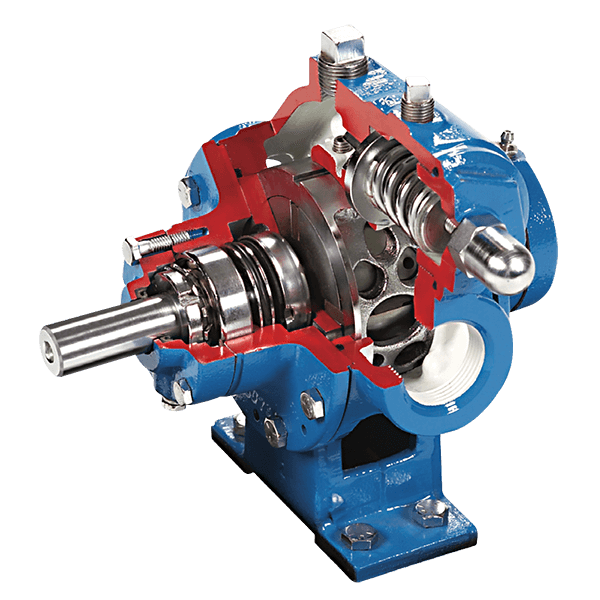

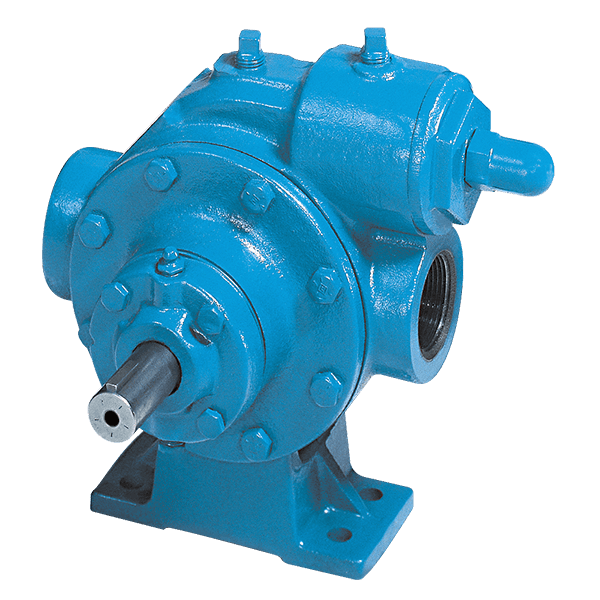

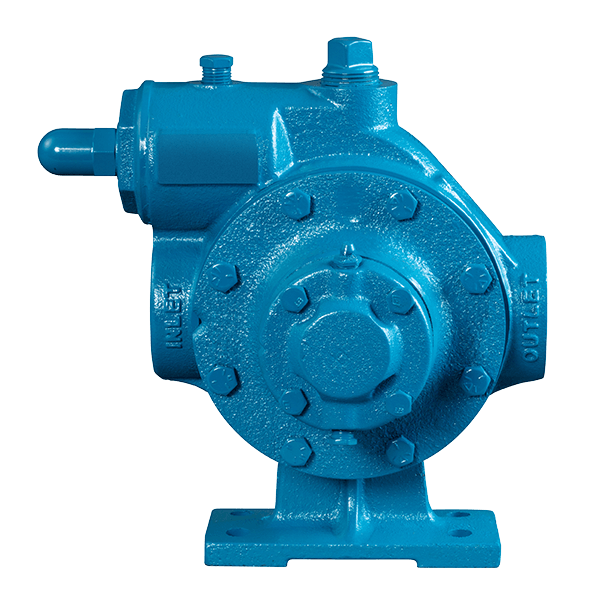

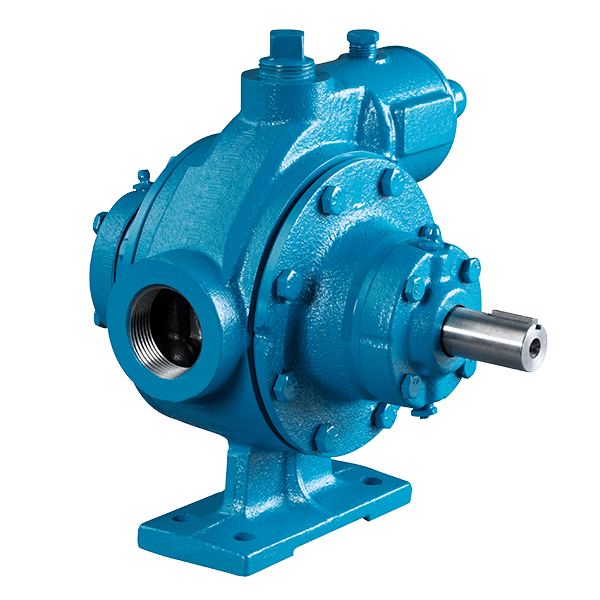

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the Iron Line XL pump line features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.

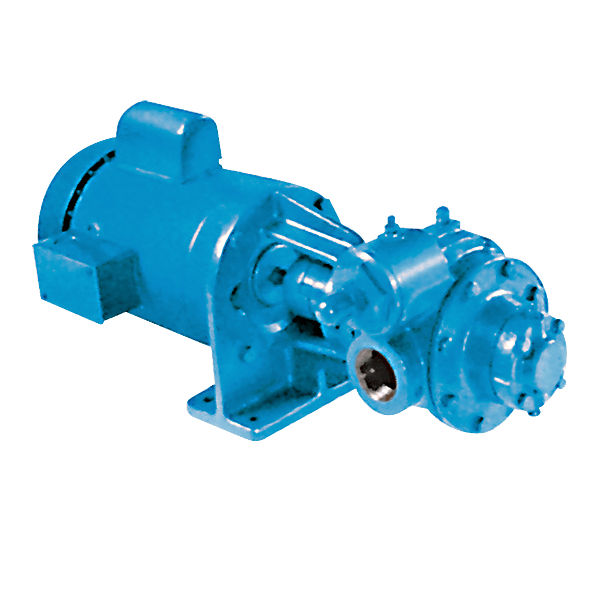

Blackmer fully Integrated Unit Assemblies are the pre-engineered and pre-designed drop-in pumping solution. These unit assemblies, include motor, gearbox, baseplate, coupling safety covers, and a XL 1.5-inch Sliding Vane Pump. No alignment required with these pre-configured fully Integrated Unit Assemblies as they are ready for immediate drop-in installation.
Features and Benefits
- Ductile-iron construction with internal relief valve
- Blackmer mechanical seal and ball bearing construction provide maximum reliability
- Symmetrical bearing support assures even loading and wear for long life
- Adjustable relief valve protects pump against excessive pressures
- External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
- Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs
Applications
- Refinery applications
- Lube oil plants
- General industry
- Processing applications
- Filling applications
- Transfer applications
Performance and Specifications
AVAILABLE MODELS
- XRL(F)1.25
- XL(F)1.25
- XL(F)1.5
VISCOSITY
- 0.2 - 4,250 cP
CONNECTION ORIENTATION
- Side Inlet | Side Outlet
TEMPERATURE
- -25°F to 300°F (-32°C to 149°C)

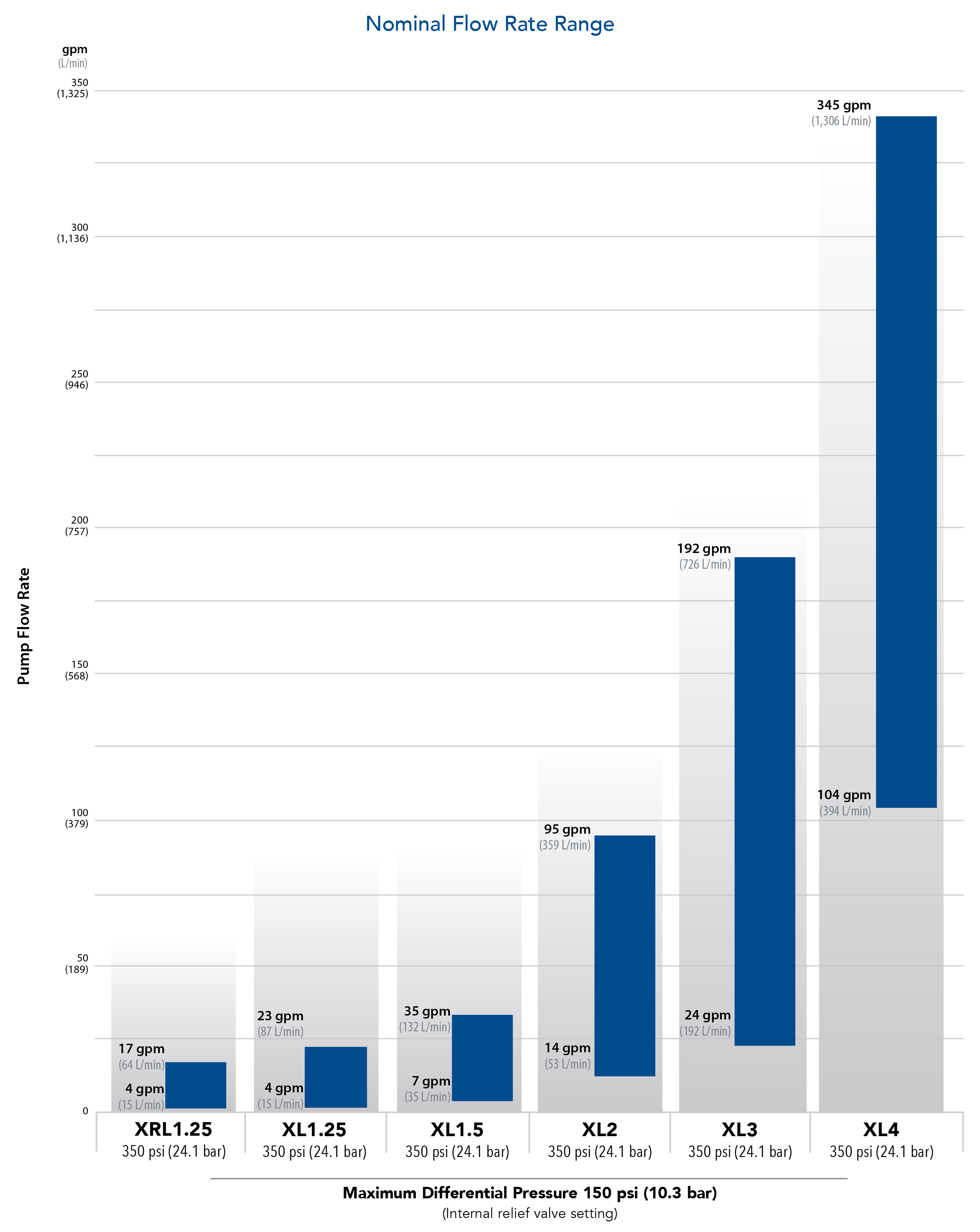

NOMINAL FLOW RATE RANGE
- XRL(F)1.25: 4 - 17 gpm (15 - 64 L/min)
- XL(F)1.25: 4 - 23 gpm (15 - 87 L/min)
- XL(F)1.5: 7 - 35 gpm (35 - 132 L/min)
DIFFERENTIAL PRESSURE
- 150 psi (10.3 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 350 psi (24.1 bar)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
PRIMARY MATERIALS OF CONSTRUCTION
- Ductile Iron
VANE MATERIALS
- Duravane
- EC Laminate
MIN/MAX SPEED (rpm)
- 100 - 1,800
Dimensions
| Pump Model | L | W | H | Approx. Wt. | |
|---|---|---|---|---|---|
| XL1.25, XRL1.25 | in | 9-5/16 | 9 | 9-1/5 | 30 lb |
| mm | 236.5 | 230.2 | 233.4 | 13.6 kg | |
| XLF1.25, XRLF1.25 | in | 13 | 9-1/8 | 8 | 39 lb |
| mm | 330.2 | 231.8 | 203.2 | 17.7 kg | |
| XL1.5, XRL1.5 | in. | 9-5/16 | 9 | 9-1/5 | 30 lb |
| mm | 236.5 | 230.2 | 233.4 | 13.6 kg | |
| XLF1.5, XRLF1.5 | in | 13 | 9-1/8 | 8 | 39 lb |
| mm | 330.2 | 231.8 | 203.2 | 17.7 kg |
Materials of Construction
| Parts | Materials |
|---|---|
| Casing, Heads, Relief Valve Cover | Ductile Iron: ASTM 536 |
| Discs, Bearing Covers, Liner | Cast Iron: ASTM A48 |
Pump Options
| Options | Details |
|---|---|
| ORIENTATION OPTIONS | Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side |
| PORTING OPTIONS | Side Outlet: Outlet 180° inline porting |
| CONNECTION OPTIONS | NPT (threaded) |
| MOUNTING OPTIONS | Pump Only Unit: Pump, Motor, Baseplate, Couplings, Guards |
| SEALING OPTIONS | Blackmer single mechanical seal |
Vane Options
| Material | Temperature Limits | Viscosity |
|---|---|---|
| Duravane | -25°F to 240°F (-32°C to 115°C) | 0.2 - 4,250 cP |
| EC Laminate | -25°F to 240°F (-32°C to 115°C) | 0.2 - 8,500 cP |
Elastomer Options
| Material | Temperature Limits |
|---|---|
| FKM | -15°F to 240°F (-26°C to 115°C) |
| PTFE - SS Spring | 0°F to 240°F (-18°C to 115°C) |
| Buna-N | -25°F to 240°F (-32°C to 115°C) |
Maintenance Kits
| Model(s) | Description | Part Number |
|---|---|---|
| XRL1.25, XRLF1.25 | Kit - Maintenance | 898966 |
| XRL1.25, XRLF1.25 | Kit - Rebuild | 899066 |
| XL1.25, XLF1.25 | Kit - Maintenance | 898968 |
| XL1.25, XLF1.25 | Kit - Rebuild | 899068 |
| XL1.5, XLF1.5 | Kit - Maintenance | 898970 |
| XL1.5, XLF1.5 | Kit - Rebuild | 899070 |
