Technical Specification
Main Components
- Three-phase electric motor, 380V, 30.0 kW, belt drive
- Liquid knockout vessel with level sensor
- Relief valve
- Pressure gauges

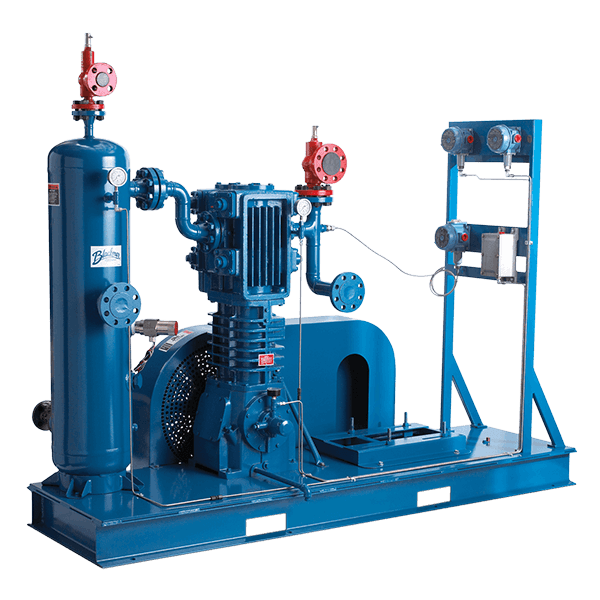

All equipment is skid-mounted on a common frame, primed and painted.
Suction and Discharge Gas Piping Package
- Complete with strainer filter, including 4-way valve DN50 for gas flow direction control.
- Provision for temperature sensor installation in the discharge gas line.
Functions
Compressor Oil/Inlet Gas/Discharge Gas
Pressure Monitoring and Control Equipment Package Includes
- Explosion-proof pressure transmitter
- Connection fittings kit
- Ball valve
- Impulse tubing
Matching programmable instrument with digital display is included in the basic electrical control panel configuration.
Compressor Discharge Gas Temperature Monitoring and Control Equipment Package
Explosion-proof temperature sensor for installation in the discharge gas line. Matching programmable instrument with digital display is included in the basic electrical control panel configuration.
Electrical Control Panel
For compressor package with capacity up to 209 m³/h (7,383 SCFH)
Designed for indoor installation outside hazardous areas, factory-assembled and ready for connection to electric motor up to 30.0 kW with soft-start system.
Equipped with matching instruments for connection of the following sensors
- Minimum gas pressure monitoring in suction gas line
- Maximum gas pressure monitoring in discharge gas line
- Minimum compressor oil pressure monitoring
- Gas temperature monitoring in discharge gas line
Interface Features
- Connection bus for external START-STOP pushbutton
- Signal line from gas condensate high-level sensor in knockout vessel
- External "Gas Detection" and "Fire" signals
- External audible and visual alarms
- Individual "Fault" indicator on the front panel
