Ebsray® RC Series Regenerative Turbine Pumps are designed and precision-built for high-pressure transfer of LPG, autogas, propane, and butane.
Features and Benefits
- Low maintenance - single stage impeller
- Close coupled to standard IEC or NEMA frame flanged 2 pole motors
- Unique cartridge design mechanical seal
- Integral API 682-ISO 21049 compliant throttle bush
- Extremely quiet, vibration free operation
- Very simple to service
Technical Data
| Part | Material |
|---|---|
| Body, Cover | Ductile Iron to ASTM A395 |
| Impeller | Bronze as Standard |
| Shaft | High-Tensile Alloy Steel |
| O-Rings | FKM |
| Coupling Guard | Aluminum |
| Porting | |
|---|---|
| Inlet | 1” NPT Tapped Ports |
| Discharge | 1” NPT Tapped Ports |

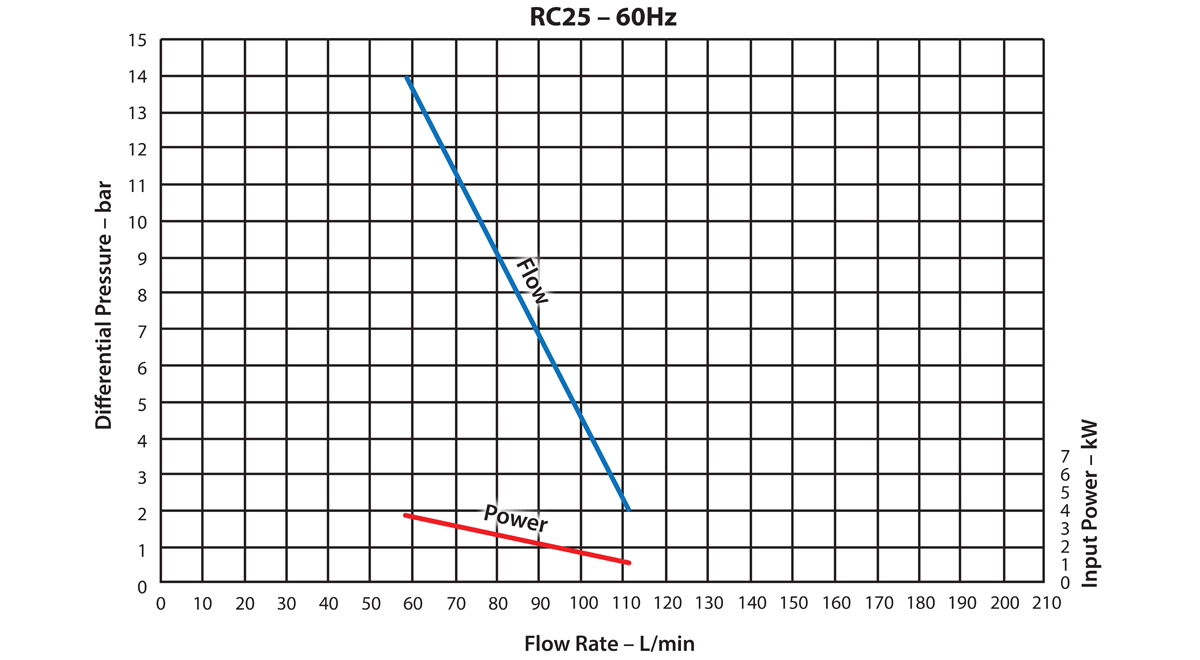

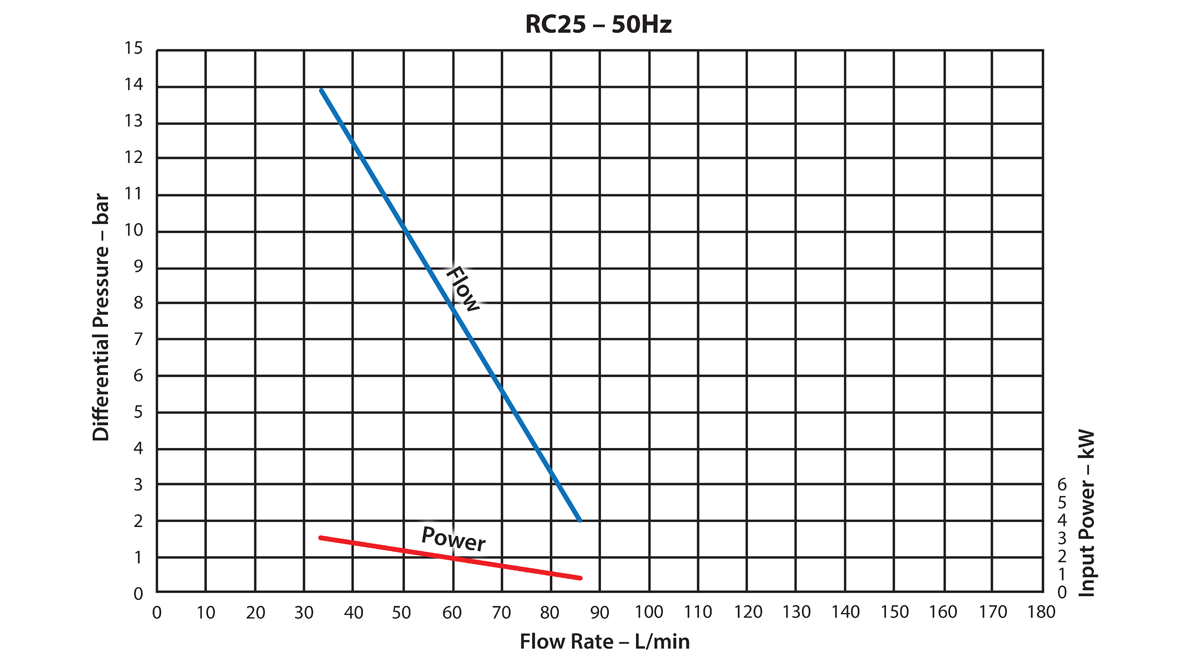

Performance Data
| Performance Data (50 & 60 Hz) | |
|---|---|
| Max. Flows | 50 Hz: 80 L/min (21 gpm) 60 Hz: 105 L/min (28 gpm) |
| Max. Differential Pressure | 14 bar (200 psi) |
| Hydrostatic Test Pressure | 70 bar (1,015 psi) |
Applications
- LPG Autogas dispensers, single or two hoses (RC25)
- Industrial dispensing
- Autogas refueling
- Marine dispensing
- Portable tanks
- Cylinder filling
- Forklift refueling
- Direct burner or vaporizer feed
